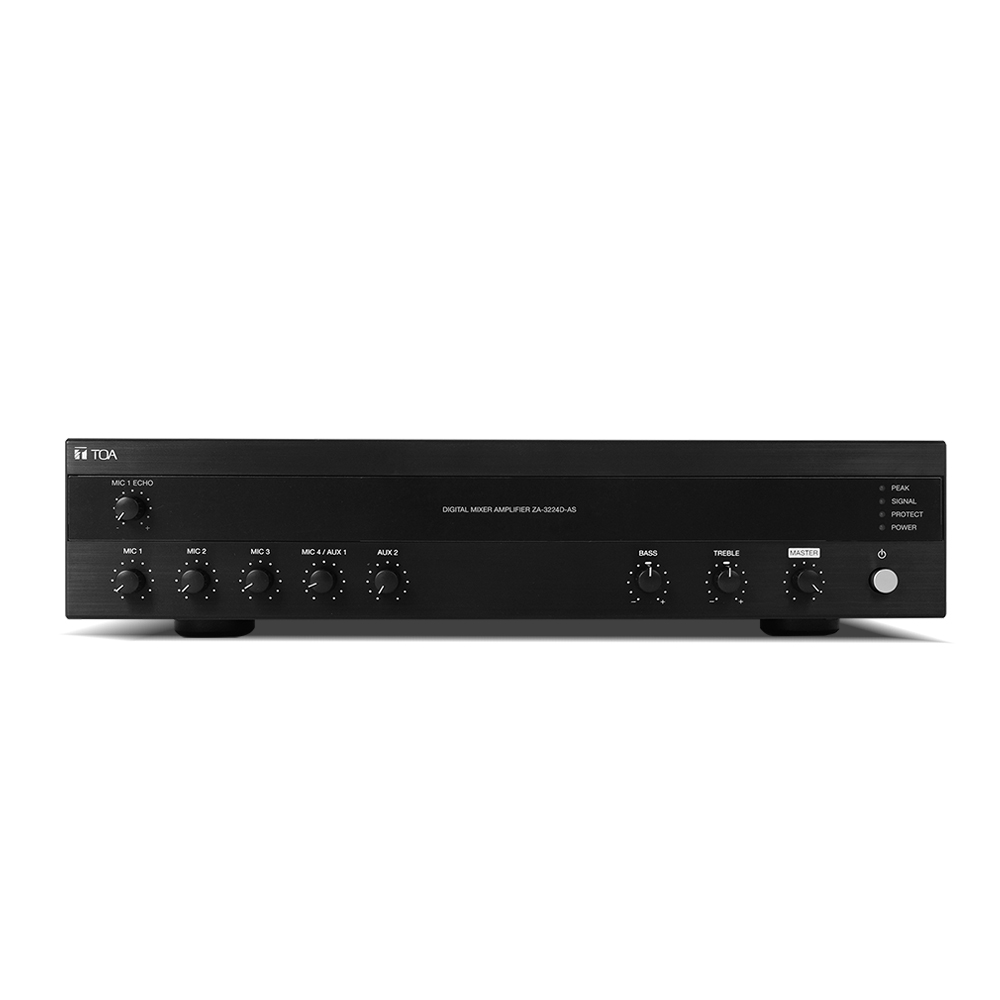

ZA-3224D-AS 1 Digital Mixer Amplifier
ZA-3224D-AS 1 Digital Mixer Amplifier - Image 2

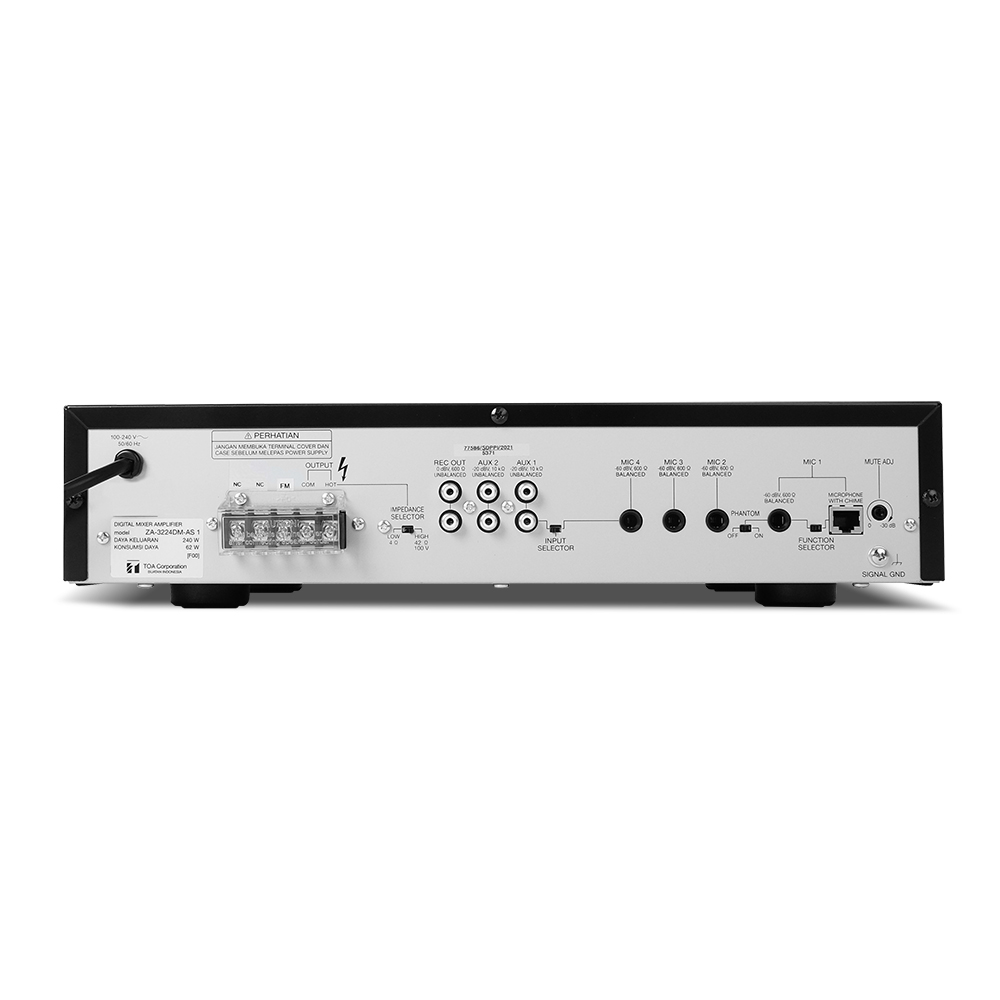

ZA-3224D-AS 1 Digital Mixer Amplifier - Image 3

ZA-3224D-AS 1 Digital Mixer Amplifier

Original price was: Rp5.500.000,00.Current price is: Rp5.300.000,00.

Categories: , Tag: Brand:

Description

ZA-3224D-AS 1 adalah mixer power amplifier berkinerja tinggi namun hemat biaya,

yang cocok untuk keperluan siaran, *paging*, atau musik latar di sekolah, kantor,

toko, tempat ibadah, dan *ballroom* berukuran besar.

Power Source 100 – 240 V AC, 50/60Hz or 24 V DC
Rated Output 240 W
Power Consumption 62 W (AC operation at 1/8 maximum output without clip)
Frequency Response 50 – 20,000 Hz
Input MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45 with Echo function
MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack
MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1
AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack
Output Speaker out: Speaker Output in screw type terminal
Direct line (selectable): 42 Ω (100 V) or 4 Ω
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio Over 60 dB
Total Harmonic Distortion Under 1% at 1 kHz, 1/3 rated power
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1: Mutes other input signals by 0-30 dB attenuation
Indicator Power, Signal, Peak, Protect
Ventilation Fan Cooling
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 100.9 (H) × 357 (D) mm
Weight 5.1 kg



Produk TOA Original
Harga terbaru dan update Per- Agustus 2026
Garansi Resmi 1 tahun TOA Center
Distributor Resmi dari TOA Depok
Didalam kardus: Dilengkapi dengan buku panduan yang sangat lengkap
Harga bisa berubah sewaktu-waktu tanpa pemberitahuan sebelumnya

Informasi lebih lanjut ketersediaan produk dan pengadaan produk TOA kuantias banyak, hub/chat: 0878-5719-0654
